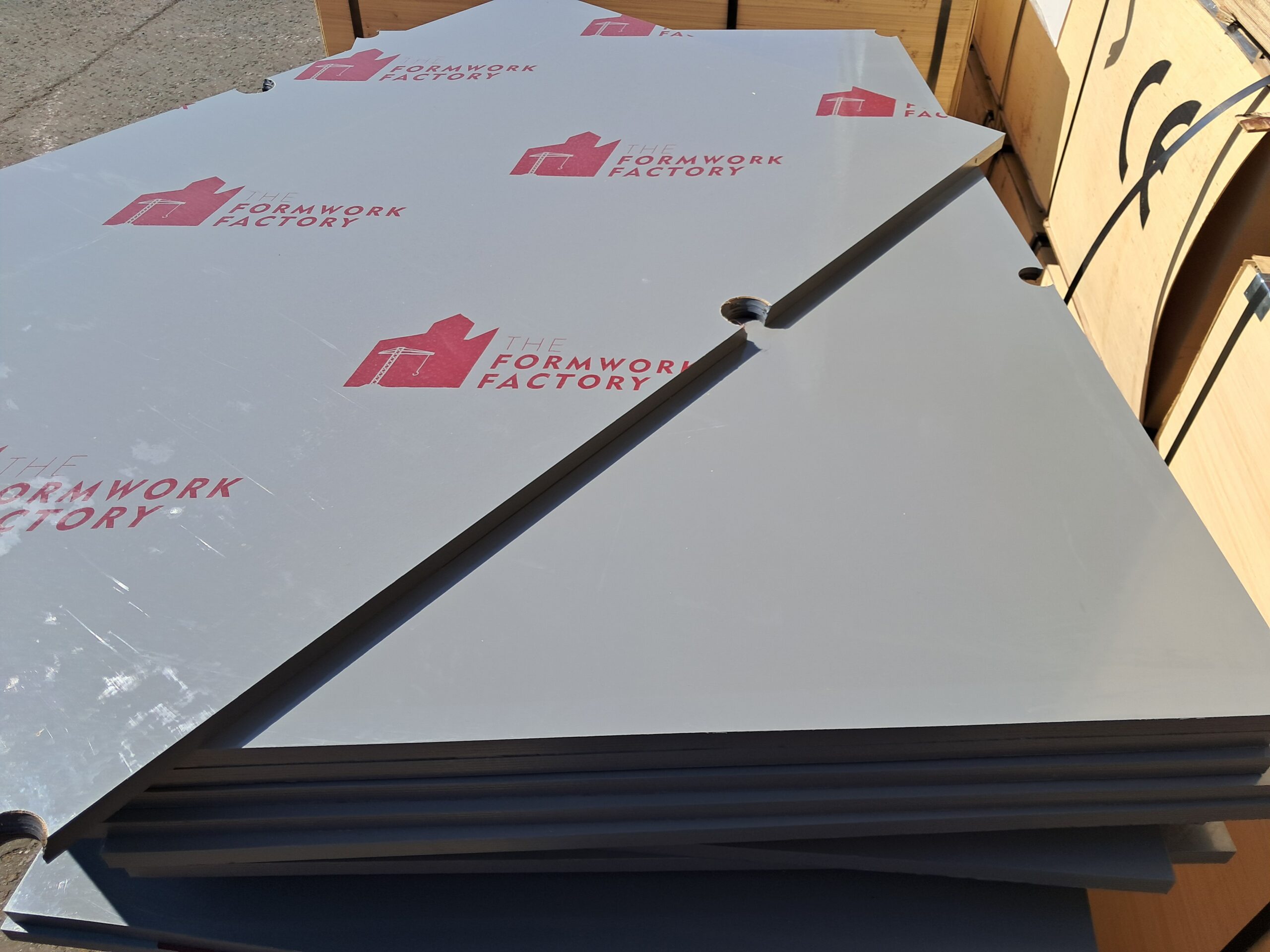

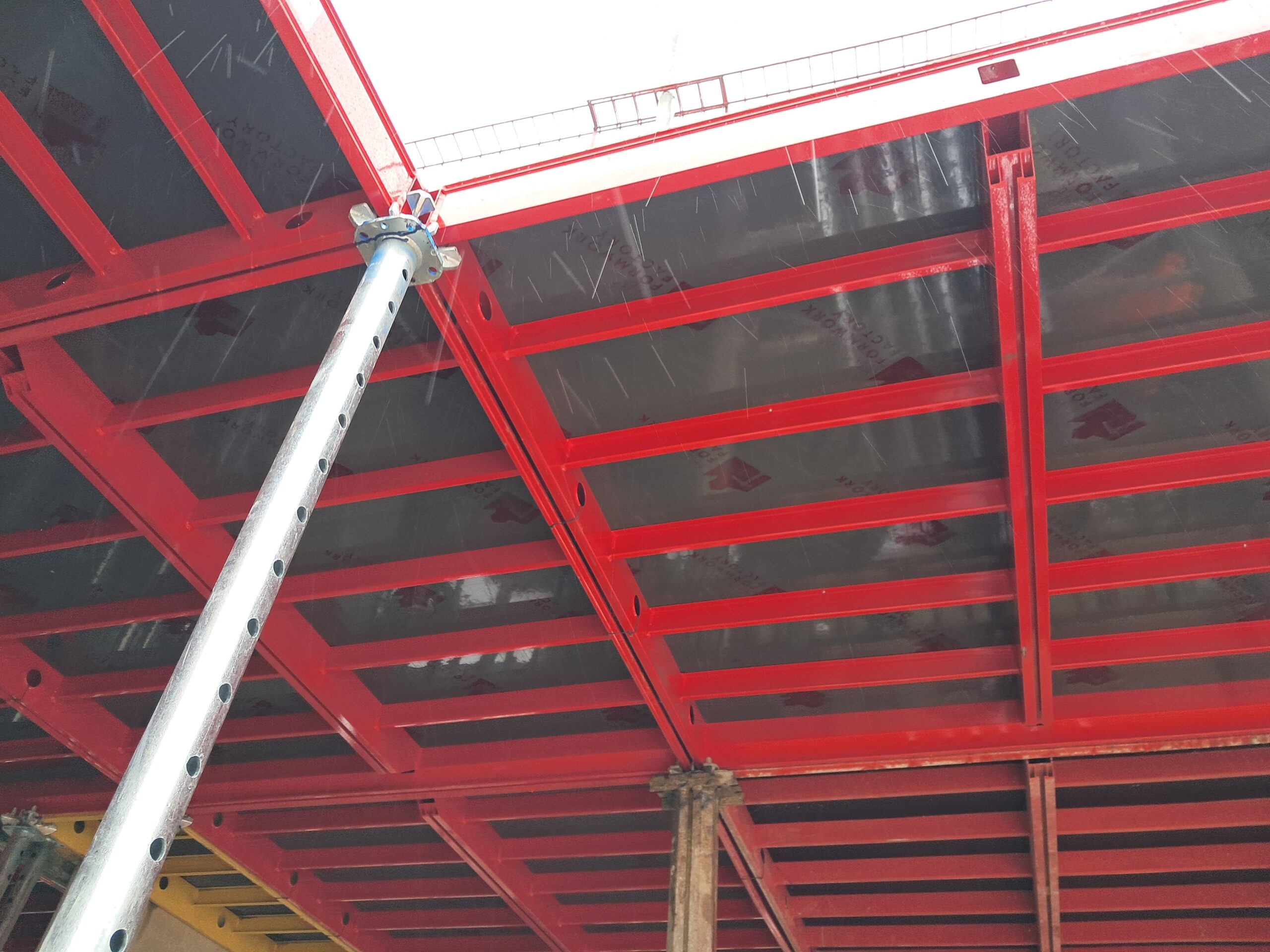

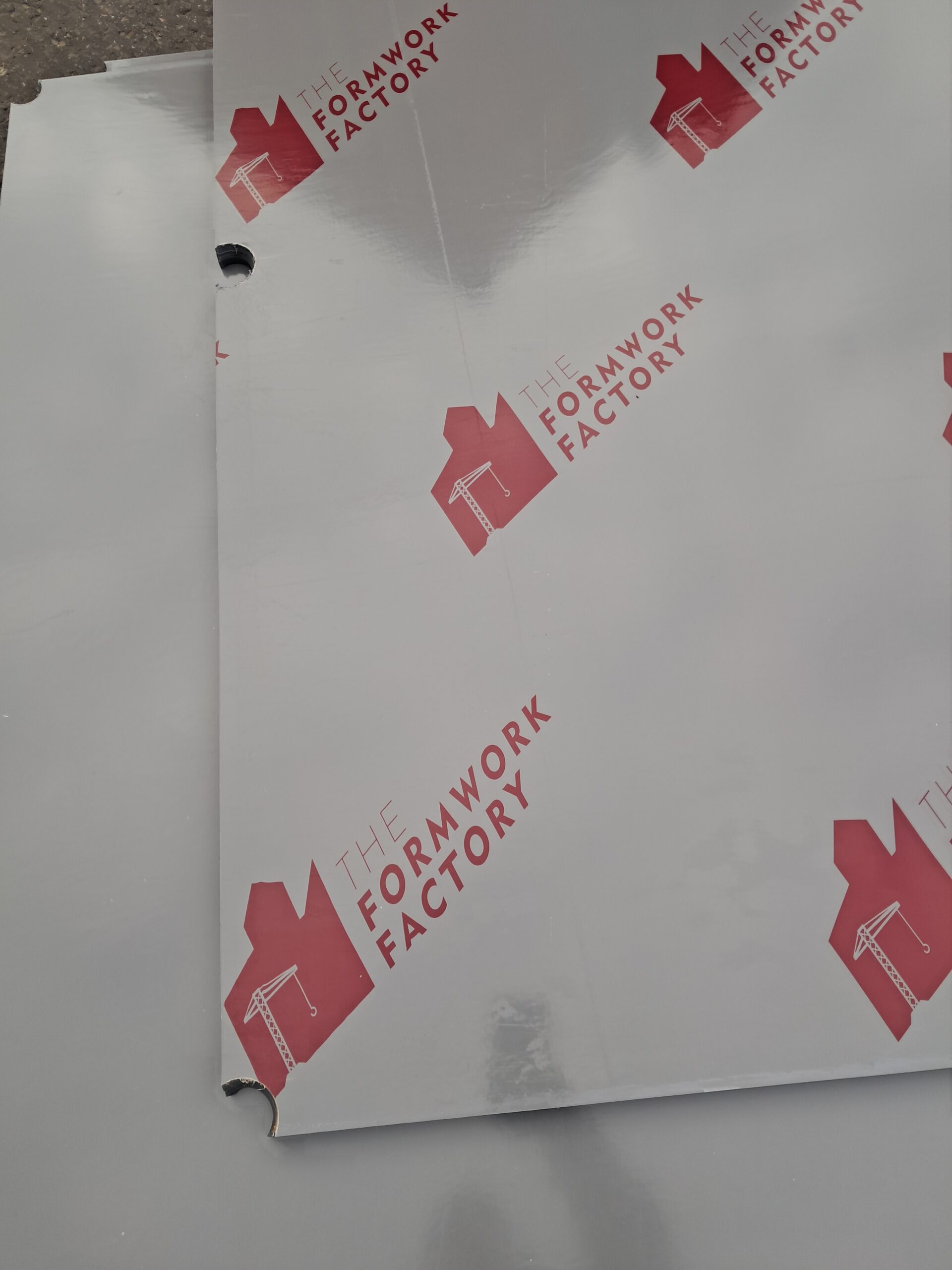

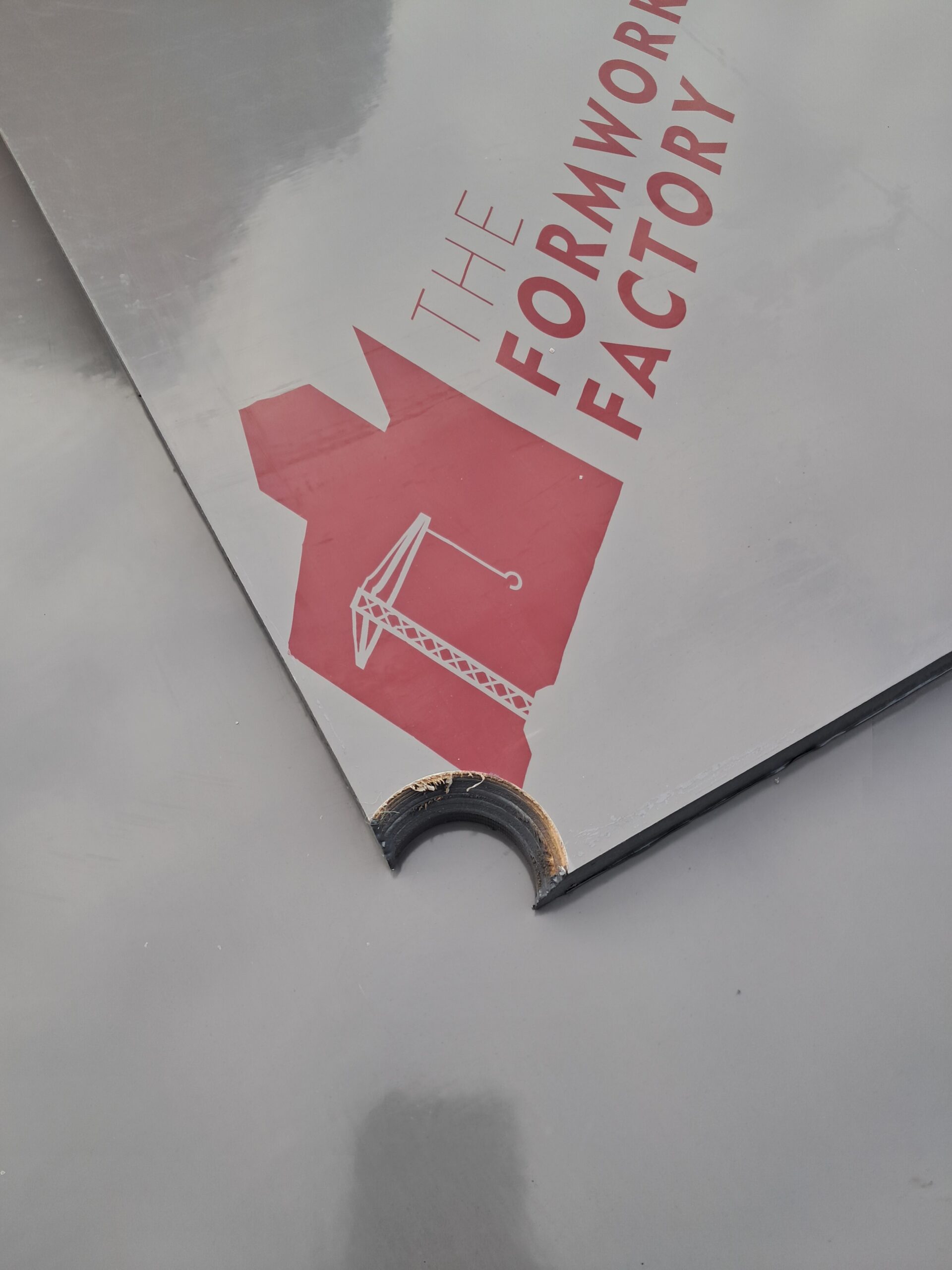

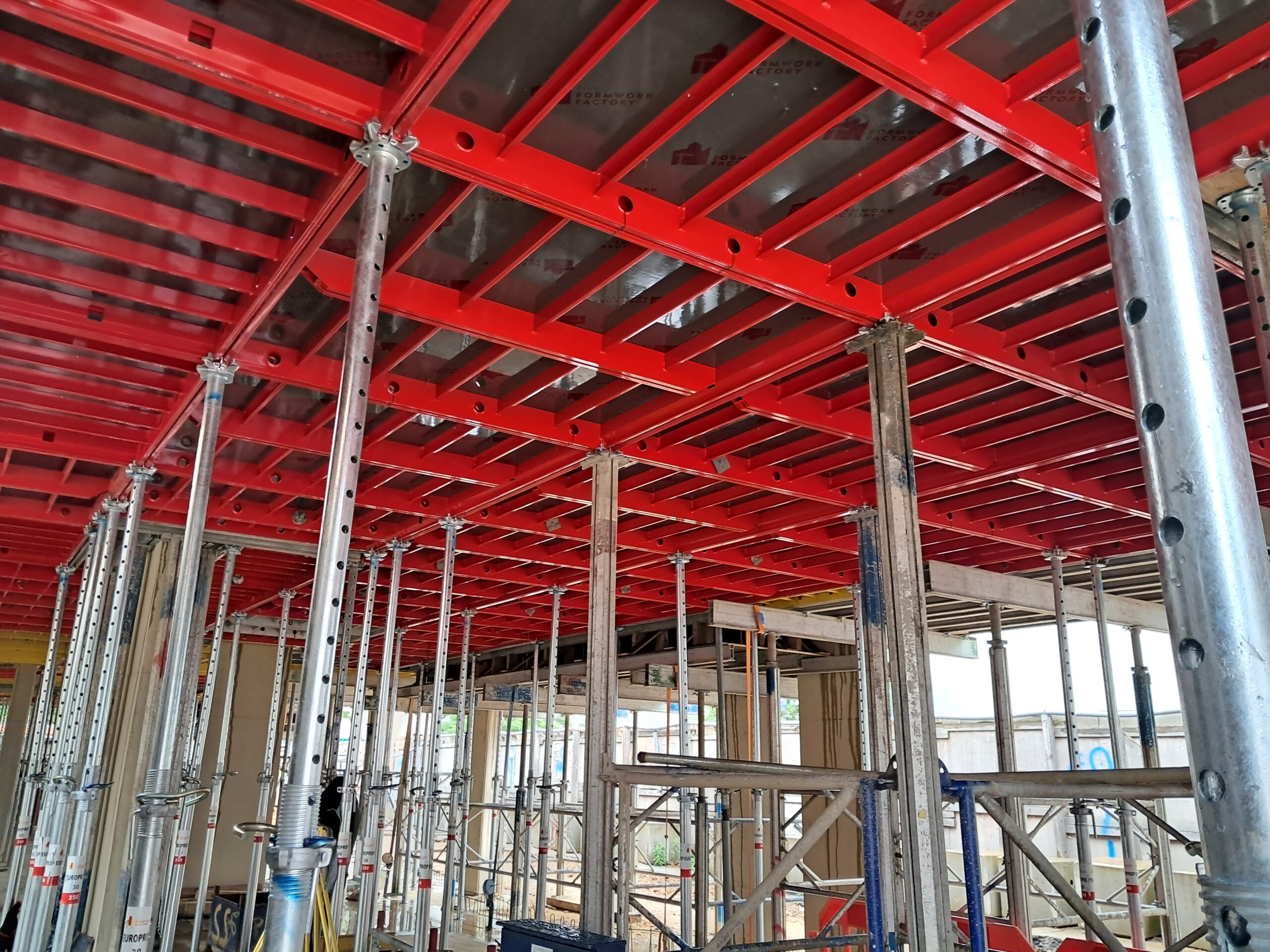

The durable and tough-surfaced overlay forms a waterproof surface which protects against chemicals and weathering and prolongs the life of the board making it ideal for use in formwork panels. TFF supplies Thermoplastic Plywood in a range thickness 9mm, 10mm 18mm and 21mm to suit any panel types and manufactures and can be sold per sheet or pre-cut and routed to suit the customer panel. This manufacture of this ply complies with highest international quality standards and the glue on each panel is checked by ultrasound screening.
| Thickness EN 315 | mm | 8.5-9mm-9.5 | 11.3-12mm-12.5 | 14.2-15mm-15.3 | 17.1-18mm-18.2 | 20.0-21mm-21.1 |
| Bend. res EN789 | MPa | 59 | 58 | 41 | 40 | 50 |
| E-modulus EN 789 | MPa | 4.100 | 4.500 | 5.600 | 6.000 | 7.300 |
| Piles | nº | 5+2 | 7+2 | 9+2 | 11+2 | 13+2 |
| Weight | kg/m² | 7,5 | 9 | 11,5 | 13,5 | 15,5 |
| Surface Material Water Absorption | <3% | ISO R62 |
| Surface Hardness | Shore d>70, GARDNER 5, JANKA 5,345 | Catas |
| Abrasion Resistance | -0,25g -0,14mm | CS17 Solvay Lab. |
| Taber Abrasion Resistance | 17,000 revolutions | UNI 9115 DIN 68861-2 |
| Surface Material Resistance to Combustion | 23mm/min | DIN 75200 |
| Salt Fog Resistance | The panel does not present alterations | DIN 50021 ISO9227 |
